NMEA 2000 Development and Prototyping Boards for Marine Applications

GREENFIELD, Mass. - EntSun -- The NMEA 2000 standard defines a low-cost, modest capacity, bi-directional, multi-transmitter, multi-receiver instrument network. The hardware layer is based on CAN (Controller Area Network). Typical data on an NMEA 2000 network include position latitude and longitude, GPS status, steering commands to autopilots, waypoint lists, wind sensor data, engine sensor data, depth sounder sensor data, and battery status data.

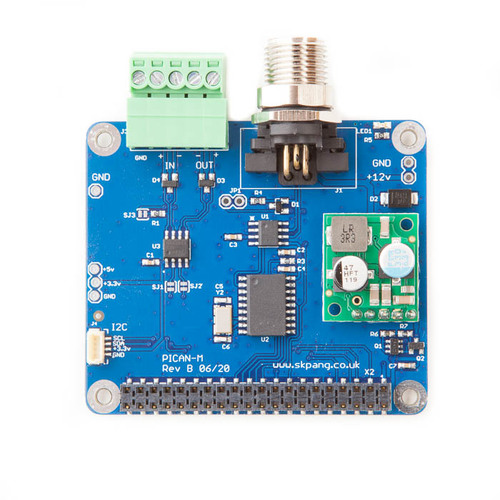

The PICAN-M (M = Marine) is a Raspberry Pi HAT with NMEA 0183 and NMEA 2000 connection. The NMEA 0183 (RS422) port is accessible via a 5-way screw terminal. The NMEA 2000 port is accessible via a Micro-C connector. The board comes with a 3A SMPS (Switch Mode Power Supply), allowing to power the Raspberry Pi plus HAT from an onboard power source (12 VDC).
